Torque Tools
Smart Socket

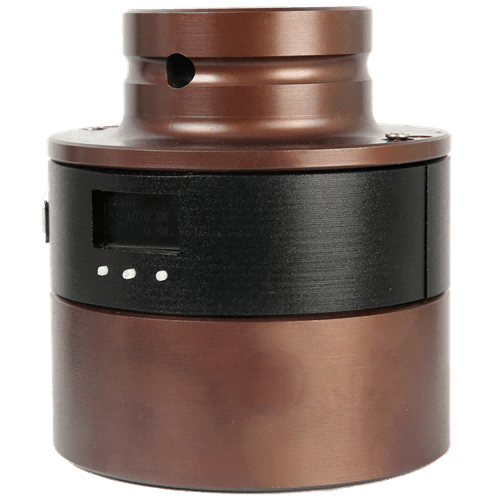

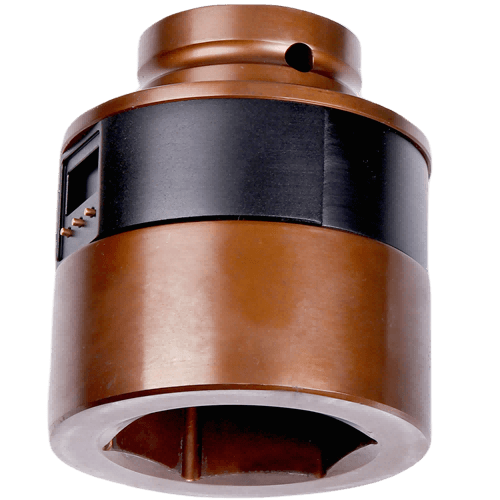

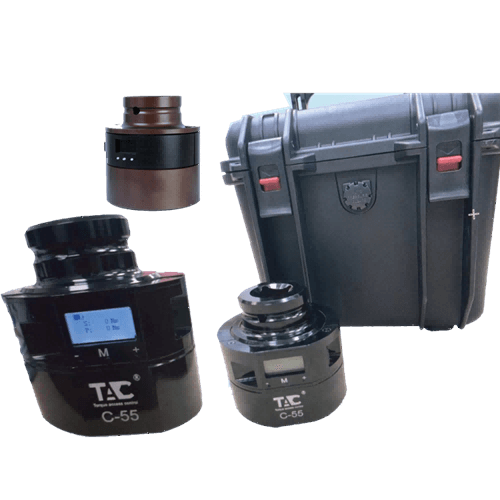

TAC-C Smart socket
*Real time monitoring, measures and display peak torque
*Preset target torque, real peak torque Pass or Fail indication
*Data recording system, download or transfer by Wireless/Bluetooth
*Wide range torque measurement
*.New update App software and Industrial touch screen optional
*C-Series Smart Socket is connectivity with all -Series series is Bluetooth and Wireless compatible and its for transducer verified joint calibration (optional)
*Simple new technology re-calibration system makes smart socket can fit any transducer fixture (dynamic or static) for calibration purpose
| Model | Hex S (mm) | Min Torque (N.m) | Max Torque (N.m) | S | D1 | D2 | H1 | H2 | Weight |
| mm | （Kg） | ||||||||
| C-33 | 33 | 200 | 2000 | 3/4＂ | 42 | 72 | 30 | 100 | 1.3 |
| C-36 | 36 | 200 | 2000 | 1＂ | 54 | 72 | 35 | 100 | 1.3 |
| C-41 | 41 | 200 | 2000 | 1＂ | 54 | 72 | 22 | 90 | 1.3 |
| C-46 | 46 | 200 | 2000 | 1＂ | 54 | 72 | 22 | 90 | 1.3 |
| C-50 | 50 | 400 | 4000 | 1＂ | 54 | 86 | 20 | 90 | 1.5 |
| C-55 | 55 | 400 | 4000 | 1＂ | 54 | 86 | 20 | 90 | 1.5 |
| C-60 | 60 | 400 | 4000 | 1＂ | 54 | 86 | 20 | 90 | 1.5 |
| C-65 | 65 | 1000 | 10000 | 1-1/2＂ | 87 | 115 | 30 | 120 | 4.1 |
| C-70 | 70 | 1000 | 10000 | 1-1/2＂ | 87 | 115 | 30 | 120 | 4.1 |
| C-80 | 80 | 1000 | 10000 | 1-1/2＂ | 87 | 115 | 30 | 120 | 4.1 |
| C-90 | 90 | 1600 | 16000 | 1-1/2＂ | 100 | 115 | 30 | 130 | 5.6 |
| C-100 | 100 | 1600 | 16000 | 1-1/2＂ | 100 | 115 | 45 | 145 | 7.1 |
