Electric Hydraulic Pump

Electric hydraulic pump

Three-stage radial piston pump, high switching pressure, makes the working head move forward quickly and with high efficiencyForced heat dissipation, all-aluminum shell, good heat dissipation, light weightContinuously adjustable and can be operated remotely
Description

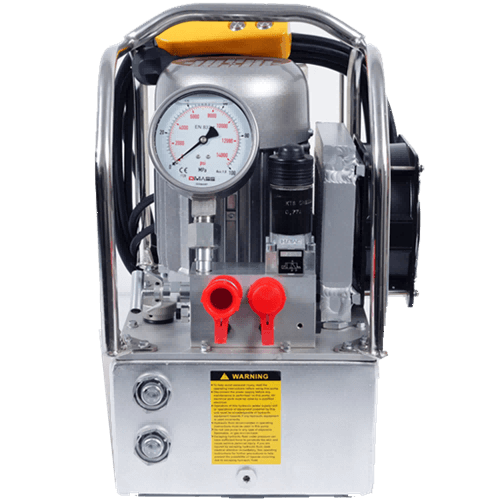

PB-3 electric hydraulic pump



1.Three-stage radial piston pump with high changeover pressure,make the working head forward quickly and High efficacy

2.For continuous operation with intermittent loading (S6 operation)

3.Transport handle and eye hooks available

4.Pressure gauge connected with quick connector – simple disassembly for calibration

5.Sealed container allows transportation when filled with oil

6.Forced heat exhaust,full aluminum shell,good heat dispersion,light weight

7.Stepless Adjustable,when the pressure between 70 - 700Bar

8.Can operate remotely

9.Three-stage pressure valve design

10.One year warranty


Model No.PB-3
Max pressure (Bar)700
Oil flow(L/min)0.8-1.6-8
Oil volume(L)8l fill volume
Power(KW)1.1
Electirc motorPower 1.1KW, 220v 50Hz, 220v and 110v, 60Hz available
High pressure hoses (Meters)6 meters each
Quick connectionNPT 1/4
Weight including oil(kg)28.5
Dimensions405mm*320mm*430mm
