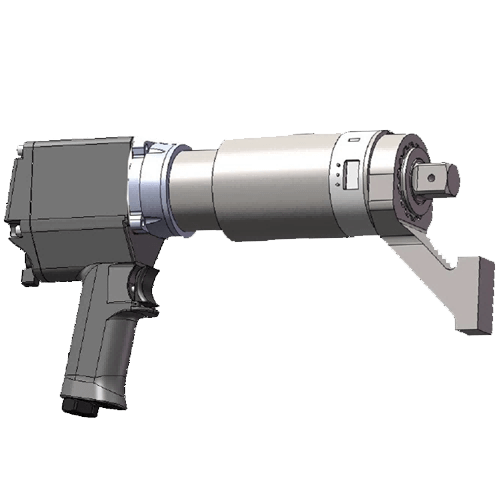

PTWD Transducer Verification
TAC Transducer Verification solves an ongoing problem in the bolting industry: incorrect air supply and wrong tool operation can cause differences in torque output of your tools.
With this wrench, the operator gets a clear visual indication whether the actual torque is deviating from the set target torque, therefore reducing errors in the bolting process. At the same time very high torque accuracy can be achieved when using the real time WIFI torque-graphing mode.
• Easy data logging and collection
• Pass or Fail indicator light on the tool
• WIFI connectivity to your smart phone or tablet
• Measured Torque - accuracy of +/-1% on transducer

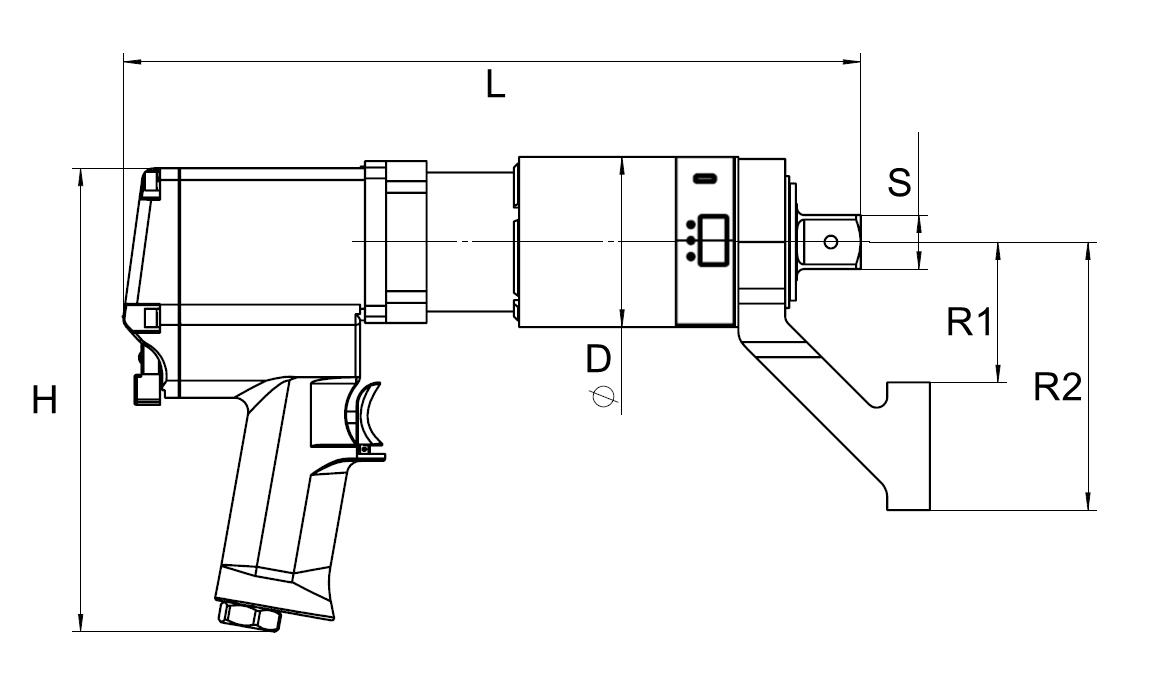

Model | Min torque(N.m) | Max torque(N.m) | S | D | L | H | R1 | R2 | Weight | Max speed |
mm | (Kg) | rpm | ||||||||
PTWD-05 | 100 | 500 | 3/4" | 60 | 180 | 210 | 56 | 99 | 4 | 50 |
PTWD-10 | 150 | 1000 | 3/4" | 74 | 260 | 210 | 62 | 112 | 4.8 | 28 |
PTWD-15 | 200 | 1500 | 1" | 76 | 270 | 210 | 70 | 130 | 5.2 | 21 |
PTWD-20 | 300 | 2000 | 1" | 76 | 270 | 210 | 70 | 130 | 5.5 | 15 |
PTWD-30 | 500 | 3000 | 1" | 93 | 350 | 210 | 80 | 150 | 7.5 | 10 |
PTWD-40 | 700 | 4000 | 1-1/2" | 97 | 350 | 210 | 80 | 150 | 9.5 | 7 |
