MXTA Square Drive Wrench

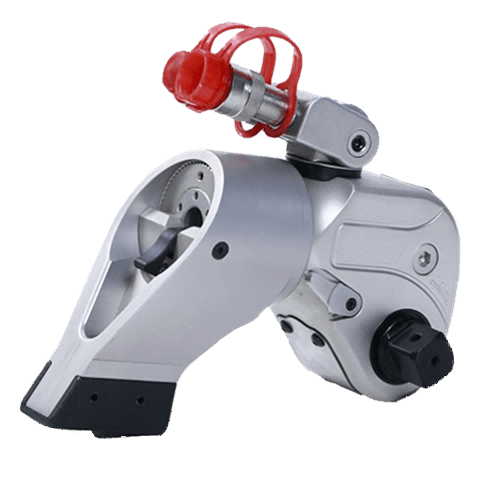

MXTA square drive wrench
High resistance with aluminium-titanium and light body
700 bar maximum operation pressure
Repeatability of ± 3%
Torsion retaining ratchet system
360° adjustable reaction arm with safety lock feature
360° x 180° multi-positional swivel quick release couplings
Suitable for continuous operation at maximum pressure
Higher torques available on request
Pressure relief valve prevents over pressure
| Model | 1MXTA | 3MXTA | 5MXTA | 8MXTA | 10MXTA | 14MXTA | 20MXTA | 25MXTA | 35MXTA | 50MXTA |
| Drive S | 3/4" | 1" | 1 1/2" | 1 1/2" | 1 1/2" | 1 1/2" | 2 1/2" | 2 1/2" | 2 1/2" | 2 1/2" |
| Min (Nm) | 180 | 450 | 750 | 1050 | 1500 | 1950 | 2600 | 3300 | 4700 | 6900 |
| Max (Nm) | 1800 | 4500 | 7500 | 10500 | 15000 | 19500 | 26000 | 34500 | 47000 | 69000 |
| Repeatability | +/- 3% | +/- 3% | +/- 3% | +/- 3% | +/- 3% | +/- 3% | +/- 3% | +/- 3% | +/- 3% | +/- 3% |
| Weight (Kg) | 2 | 4 | 7 | 10.6 | 12.9 | 20 | 25 | 33.8 | 43 | 52 |

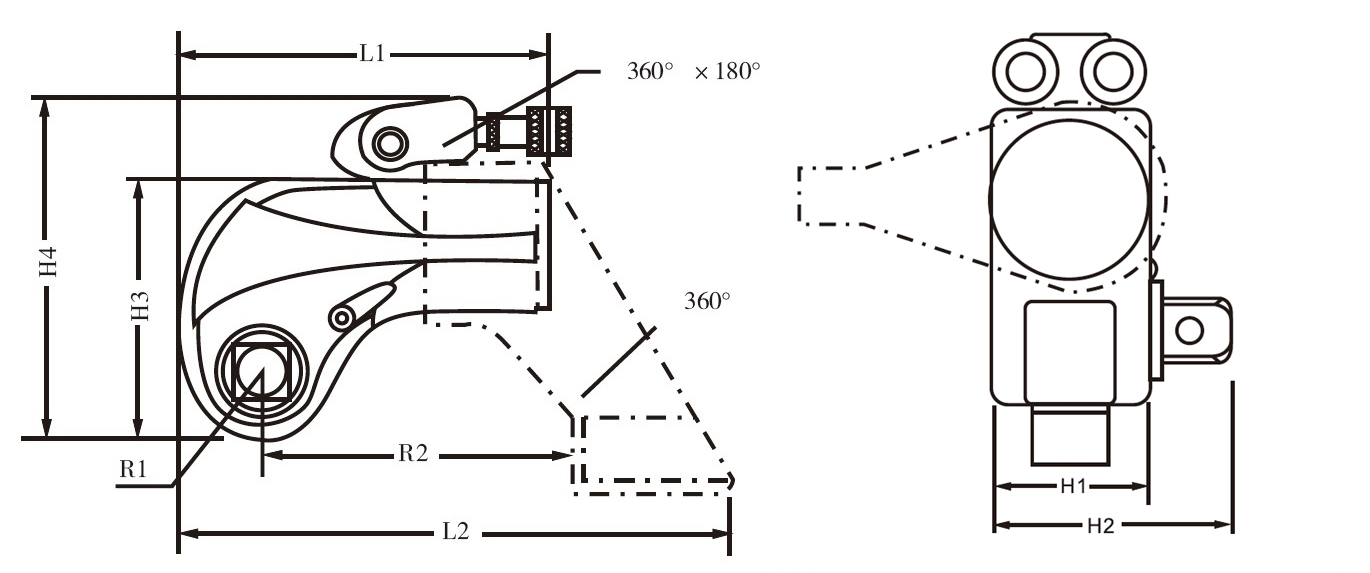

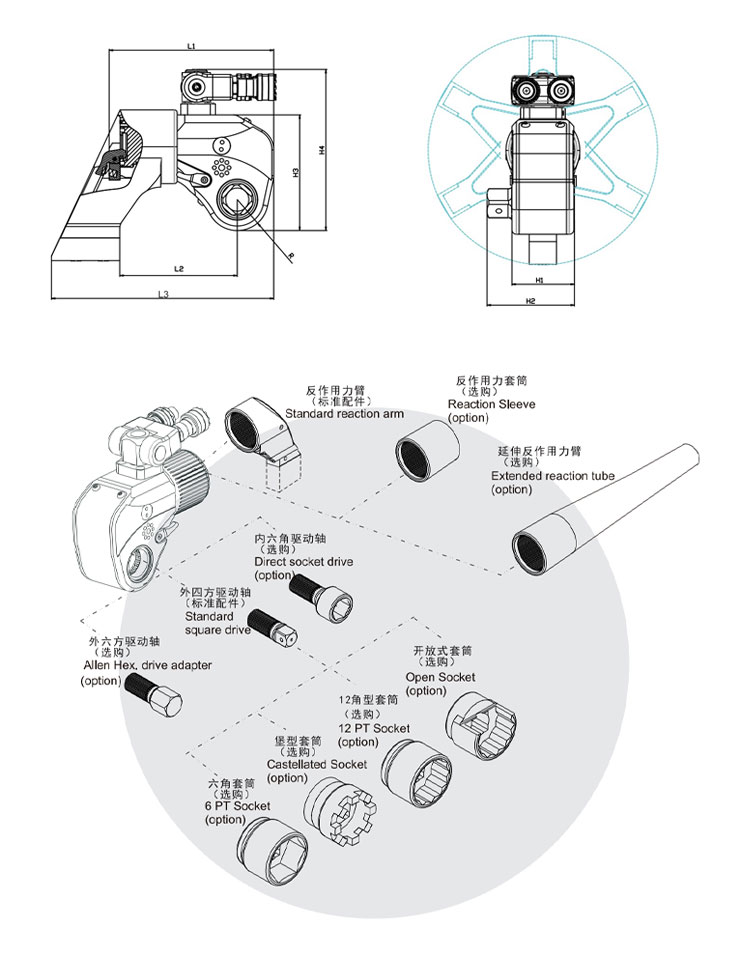

| L1 (mm) | 130 | 170 | 202 | 228 | 237 | 273 | 287 | 323 | 351 | 376 |
| L2 (mm) | 102 | 140 | 160 | 184 | 192 | 223 | 248 | 256 | 271 | 295 |
| L3 (mm) | 182 | 249 | 286 | 326 | 336 | 391 | 433 | 464 | 494 | 528 |
| H1 (mm) | 52 | 70 | 81 | 90 | 100 | 110 | 120 | 138 | 153 | 162 |
| H2 (mm) | 77 | 98 | 125 | 134 | 144 | 164 | 187 | 206 | 217 | 226 |
| H3 (mm) | 96 | 127 | 149 | 172 | 181 | 206 | 221 | 258 | 279 | 291 |
| H4 (mm) | 133 | 165 | 184 | 207 | 216 | 241 | 256 | 231 | 315 | 326 |
| R (mm) | 25.8 | 34.8 | 39.8 | 46.8 | 50.8 | 56.8 | 59.8 | 70.8 | 76.8 | 78.8 |
