Torque Tools

BETW Two-In-One

BETW Battery Electric Two-in-one

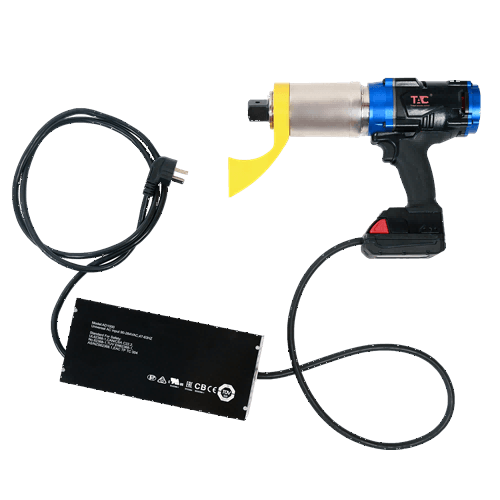

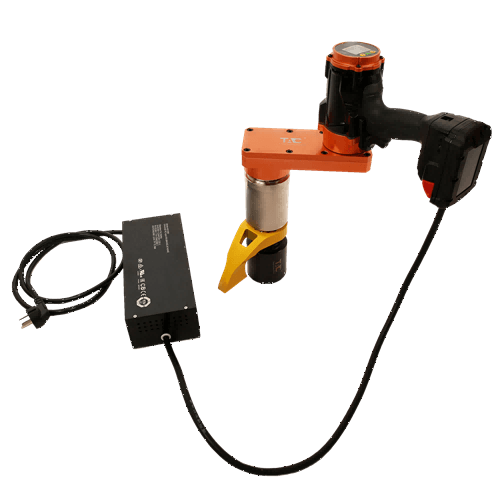

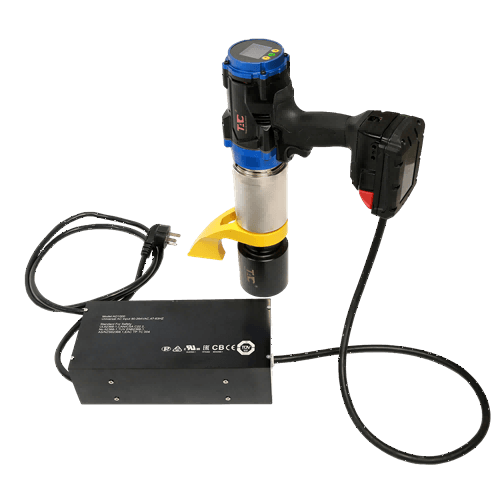

DC and AC two-in-one patented design. The dedicated power box can replace the lithium battery for work. It can be used for two purposes and has perfect battery life.Humanized design: programmable preset torque, large-size true color LCD screen dynamically displays torque and angle in real time
Description

BETW AC&DC Two-in-one


*Driven by a new advanced brush-less motor, the BTW reaches torques very precisely and efficient.

*Patented Battery+Electric 2-IN-1: Power supply 18V battery and international power supply AC 90V-264V, 47-63HZ both apply TAC battery tools.

*Humanization Designing: Programmable preset torque settings, Large size LCD screen dynamic display

*Accurate: High repeatability of +/-2%, simple re-calibration system helps tool delivery torque to apply any applications

*Enough Power: Red-lithium battery packs help bolting more nuts

*Gear Technology: Advanced gear design technology and high strength alloy steel makes tool lighter,durable and faster

*Wide-Range: Torque up to 8,000Nm

*More Functions: Torque real time display+Angle turn+number of angle turns+number of nuts optional

*Smart APP: Optional Wireless Bluetooth Transfer,  data recording system storage millions of applications, tracking results

*Close-loop system: Optional Transducerized system. Built in transducer increase accuracy to +/-1%

*BTW is Bluetooth and wireless compatible and its connectivity with C-Series Smart Socket for transducer verified joint calibration (optional)

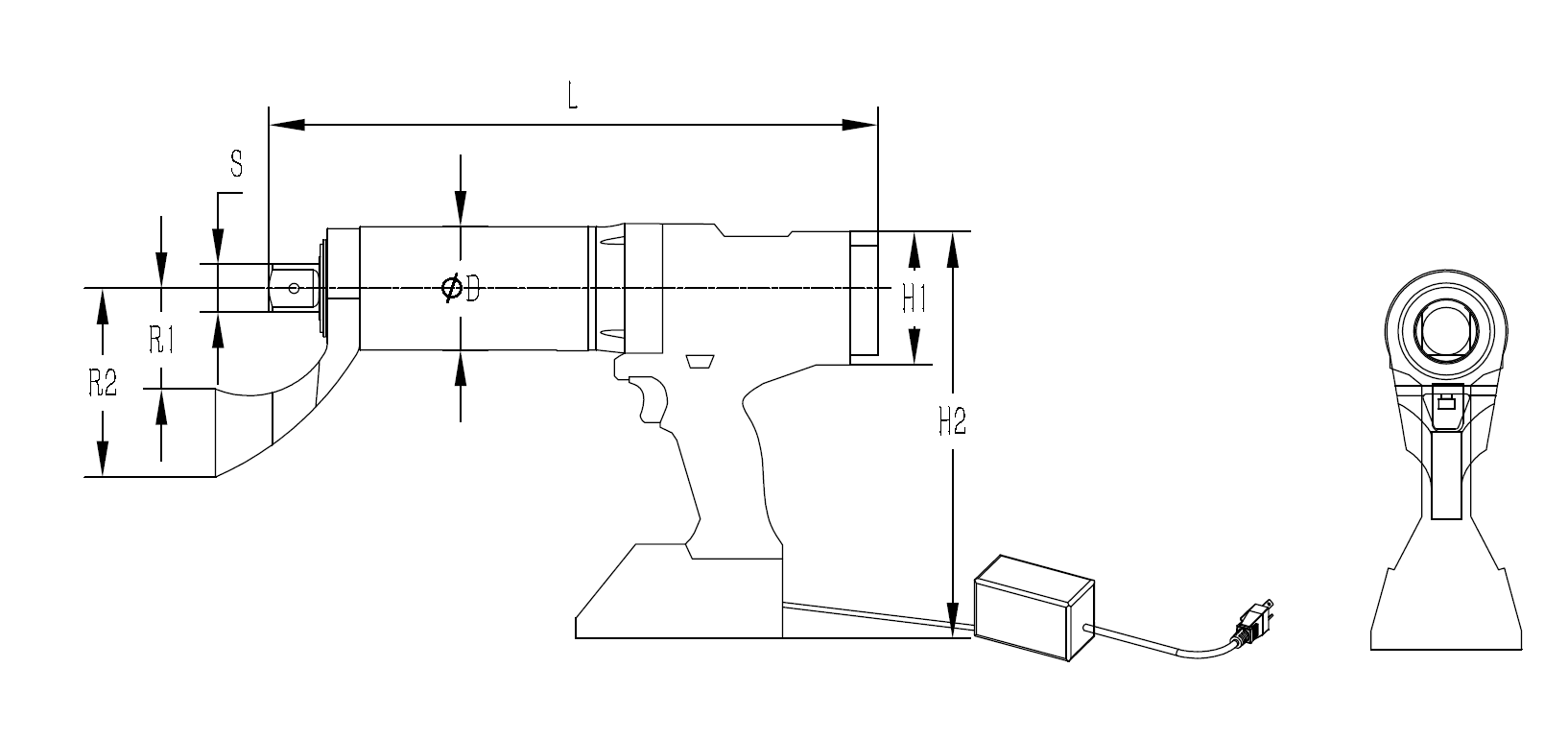

ModelMin torque(N.m)Max torque(N.m)SDLH1H2R1R2WeightMax speed
mm(Kg)rpm
BETW-051005003/4"602707621053102426
BETW-1013010003/4"7427776210601154.518
BETW-1518015001"7631776210661354.98
BETW-2025021001"7631776210661355.26
BETW-3048031001"8634076210781457.23.5
BETW-4065040001"9535076210781459.23.2
BETW-5085050001-1/2"10335576210781459.72.5
BETW-60110060001-1/2"110400762109015511.71.8
BETW-80190080001-1/2"115415762109015513.71.5
