BTWF High speed
*Driven by a new advanced brush-less motor, the BTW reaches torques very precisely and efficient.
*The two-speed models feature a unique full automatic gearbox design, eliminating the time consuming switch between high and low speed gear.
*Humanization Designing: Programmable preset torque settings, Large size LCD screen dynamic display
*Accurate: High repeatability of +/-2%, simple re-calibration system helps tool delivery torque to apply any applications
*Enough Power: Red-lithium battery packs help bolting more nuts
*Gear Technology: Advanced gear design technology and high strength alloy steel makes tool lighter,durable and faster
*Wide-Range: Torque up to 8,000Nm
*More Functions: Torque real time display+Angle turn+number of angle turns+number of nuts optional
*Smart APP: Optional Wireless Bluetooth Transfer, data recording system storage millions of applications, tracking results
*Close-loop system: Optional Transducerized system. Built in transducer increase accuracy to +/-1%
*BTW is Bluetooth and wireless compatible and its connectivity with C-Series Smart Socket for transducer verified joint calibration (optional)

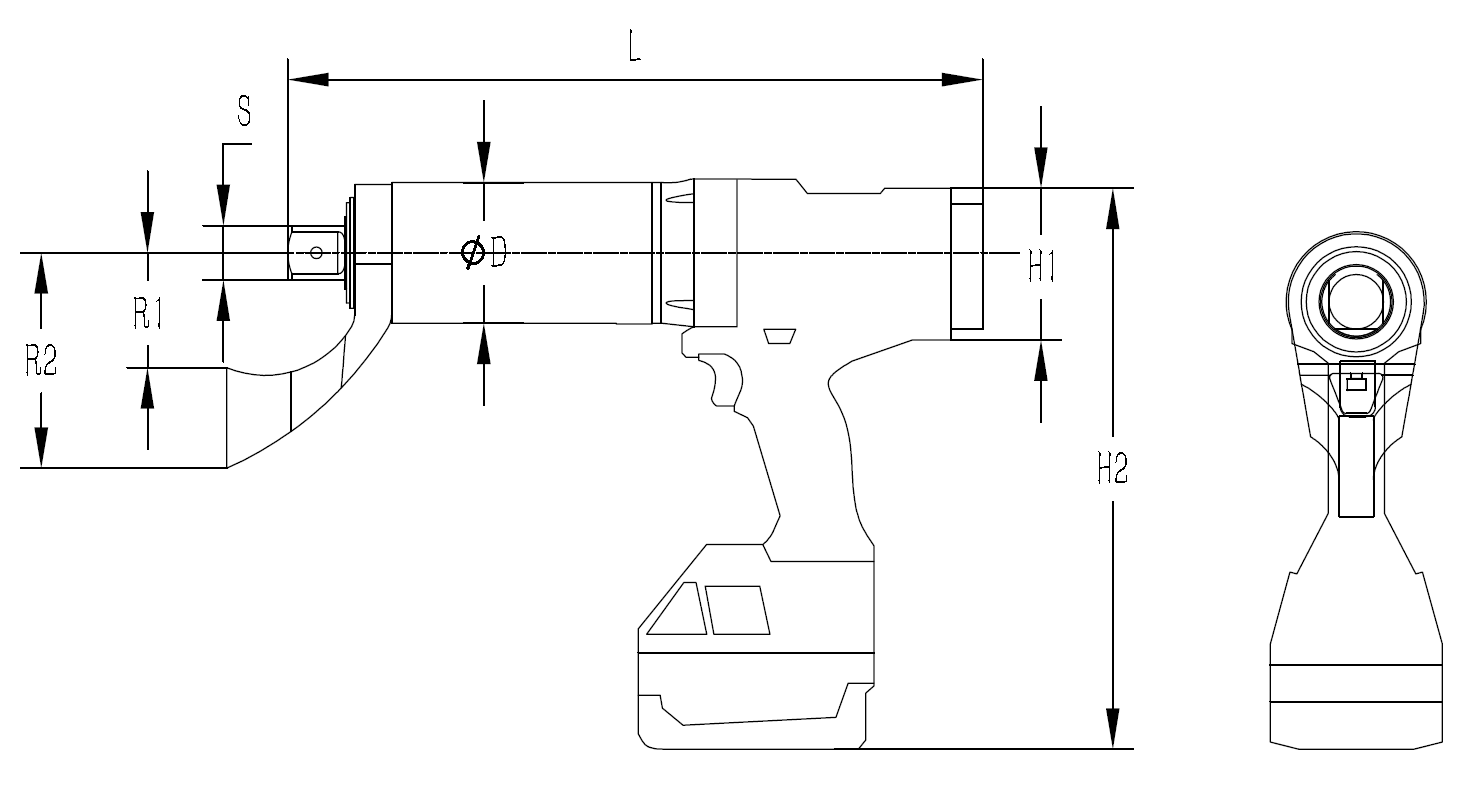

Model | Min torque(N.m) | Max torque(N.m) | S | D | L | H1 | H2 | R1 | R2 | Weight | Max speed |
mm | (Kg) | rpm | |||||||||
BTWF-05 | 100 | 500 | 3/4" | 60 | 300 | 76 | 245 | 53 | 102 | 4.5 | 100 |
BTWF-10 | 130 | 1000 | 3/4" | 74 | 310 | 76 | 245 | 60 | 115 | 5 | 82 |
BTWF-20 | 250 | 2100 | 1" | 76 | 330 | 76 | 245 | 66 | 135 | 5.7 | 48 |
BTWF-30 | 480 | 3100 | 1" | 86 | 350 | 76 | 245 | 78 | 145 | 7.7 | 45 |
BTWF-40 | 650 | 4000 | 1" | 95 | 350 | 76 | 245 | 78 | 145 | 9.7 | 45 |
