Torque Tools
Pneumatic Hydraulic Pump

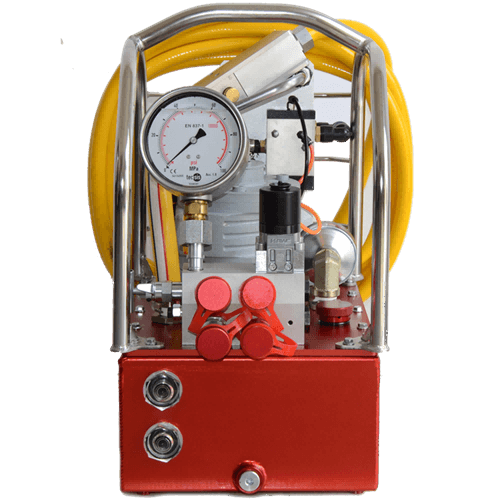

PL-3 pneumatic hydraulic pump
1.Pneumatic source driving, suitable for special working condition, which electric is forbidden.
2.Made of Titanium-Aluminium alloy, small size, light weight. easy to move.
3.Three kinds of pressure, easily changed, improve work efficiency.
4.From 40Bar to 700Bar, the output pressure can be changed freely.
5.Allocated with radiator, can work 24hours continuously.
6.The motor can be as requirements.
7.Three-stage pressure valve design
8.One year warranty
| Model No. | PL-3 |
| Max pressure (Bar) | 700 |
| Oil flow(L/min) | 0.8-1.6-7 |
| Oil volume(L) | 7l fill volume |
| Power(KW) | 1.1 |
| Air motor | Power 1.1KW, Rotate speed 3000Rpm, Pressure output 5-8Bar, Air input Value≥1.9m³/min |
| High pressure hoses (Meters) | 6 meters each |
| Oil interface | NPT 1/4 |
| Oil Return interface | NPT 1/4 |
| Weight including oil(kg) | 26 |
| Dimensions | 400mm*310mm*440mm |
