Torque Tools

BSP electronic pulse

BSP Pistol electronic pulse tool/wrench - Shanghai Power Tac
BSP Pistol electronic pulse tool/wrench - Shanghai Power Tac

BSP Pistol electronic pulse tool/wrench

Comfortable operation
BSP Pistol electronic pulse tool/wrench - Shanghai Power Tac
BSP Pistol electronic pulse tool/wrench - Shanghai Power Tac
Description

1. Comfortable operation

Low noise low noise during operation, reducing hearing damage to operators and noise pollution in the working environment.

Low vibration reduces operator fatigue and improves the comfort of long-term operations.

Ergonomic design reduces vibration, reduces operator fatigue, and improves comfort during long-term operations

Lightweight design with light weight convenient for handheld operation, reducing physical burden

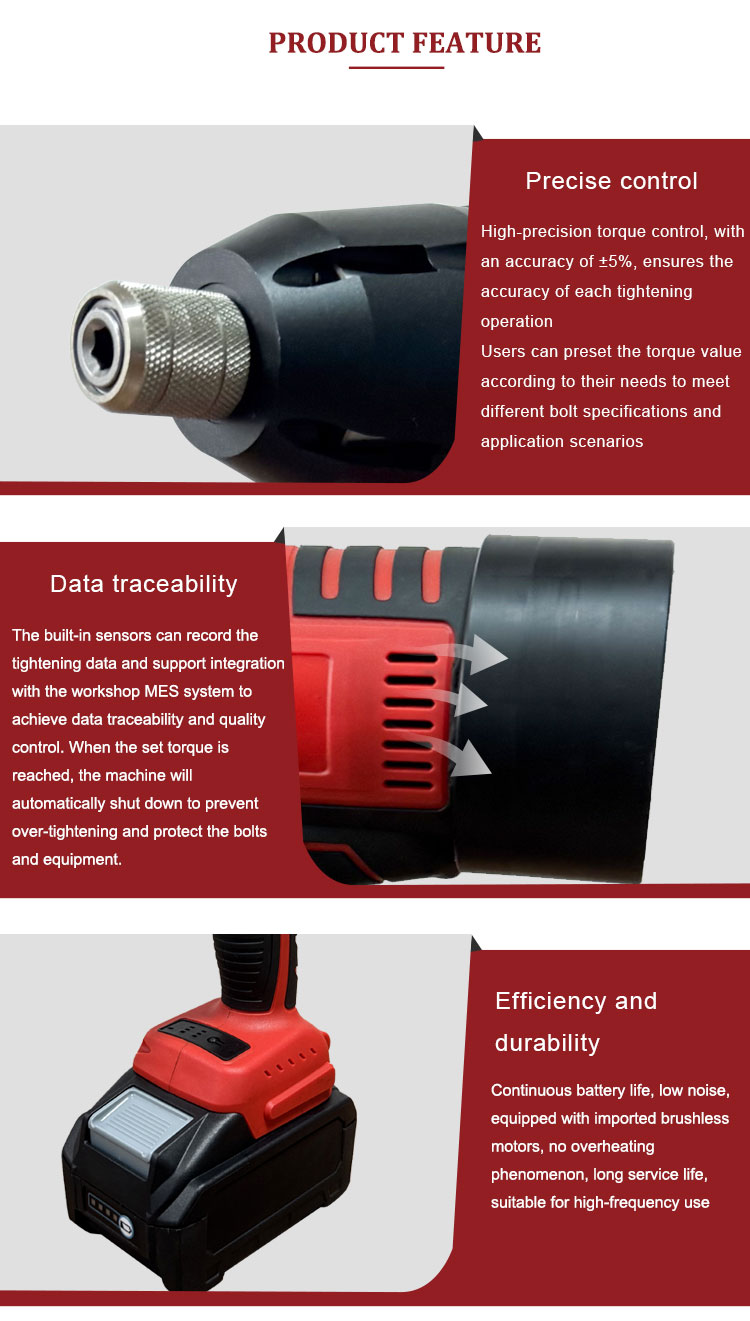

2. Precise control

Accurate torque with an accuracy of ± 5%, ensuring the accuracy of each tightening operation

Adjustable torque Users can preset torque values according to their needs to meet different bolt specifications and application scenarios

Tightening result judgment Equipped with red and green indicator lights, it displays the status of successful or failed tightening in real time, making it easy for operators to quickly judge

Number of turns and angle display Lightweight, easy to hold and operate, reducing physical burden

3. Intelligence and Data Management

Data traceability Built in sensors can record tightening data and support integration with workshop MES systems to achieve data traceability and quality control.

Intelligent functions achieves automatic shutdown of set torque, avoiding excessive tightening and protecting bolts and equipment.

4. Efficiency and durability

High efficiency fast response, high speed, can significantly shorten tightening time and improve production efficiency

High durability imported brushless motors, no overheating phenomenon, long service life, suitable for high-frequency use

Continuous battery life Under high endurance and continuous operation, the battery can last for 3 hours, Improve equipment utilization.

5. Protection and compatibility

Smooth tightening Smooth torque output to avoid damage to nuts and bolts

Strong compatibility suitable for various bolt specifications and application scenarios


   Parameter

 Description

 Drive mode

 Electronic pulse drive (no reactive force)

 Speed

 Max speed3000rpm

 Torque Range

 5-250N.m

 Weight

 2.1kg (body+battery)

ModelMin torque(N.m)Max torque(N.m)SDL1L2HABWeightMax speed
mm(Kg)rpm

BSP-0015

5151/4"3910710324760762.12700

BSP-0030

10303/8"4610711224760762.22700

BSP-0050

20503/8"5710711324760762.32700

BSP-0075

35953/8"5710711324760762.32700

BSP-0150

551501/2"7016013428780762.73000

BSP-0250

1002501/2"7216013628780762.73200
