Torque Tools

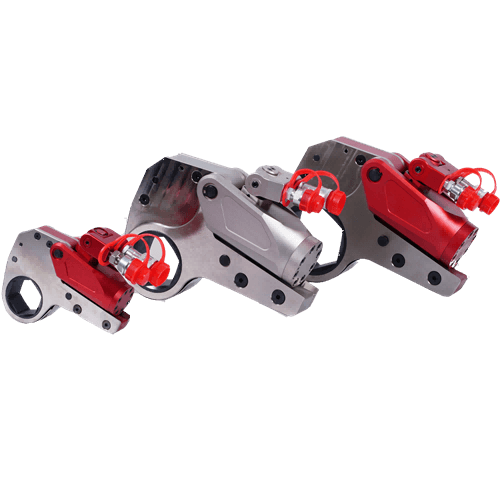

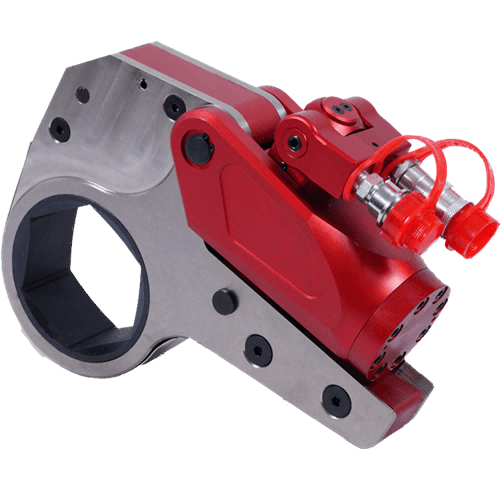

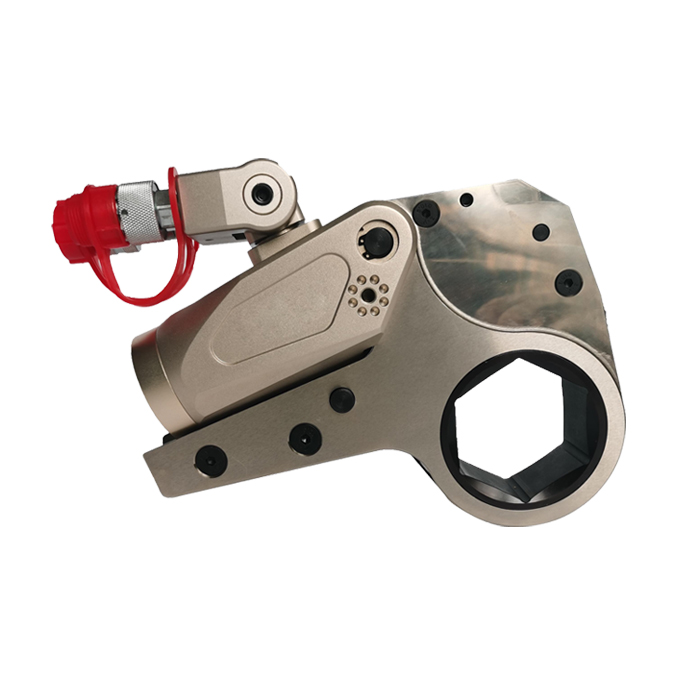

XLCT Low Profile Wrench
XLCT low profile wrench
High resistance with aluminium-titanium and light body
700 bar maximum operation pressure
Repeatability of ± 3%
Torsion retaining ratchet system
360° x 180° multi-positional swivel quick release couplings
Interchangeable cassettes with small head radius
Suitable for continuous operation at maximum pressure
Pressure relief valve prevents over pressure
| Model | 2XLCT | 4XLCT | 8XLCT | 14XLCT | 18XLCT | 30XLCT |
| Min (Nm) | 250 | 500 | 1000 | 1720 | 2700 | 4000 |
| Max (Nm) | 2500 | 5400 | 10500 | 17900 | 27000 | 40500 |
| Repeatability | +/- 3% | +/- 3% | +/- 3% | +/- 3% | +/- 3% | +/- 3% |
| Weight (Kg) | 2.2 | 5 | 9.6 | 16.9 | 22.9 | 38 |

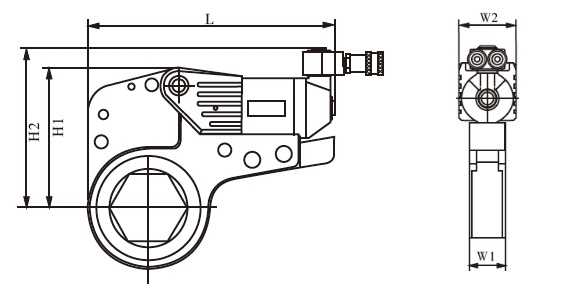

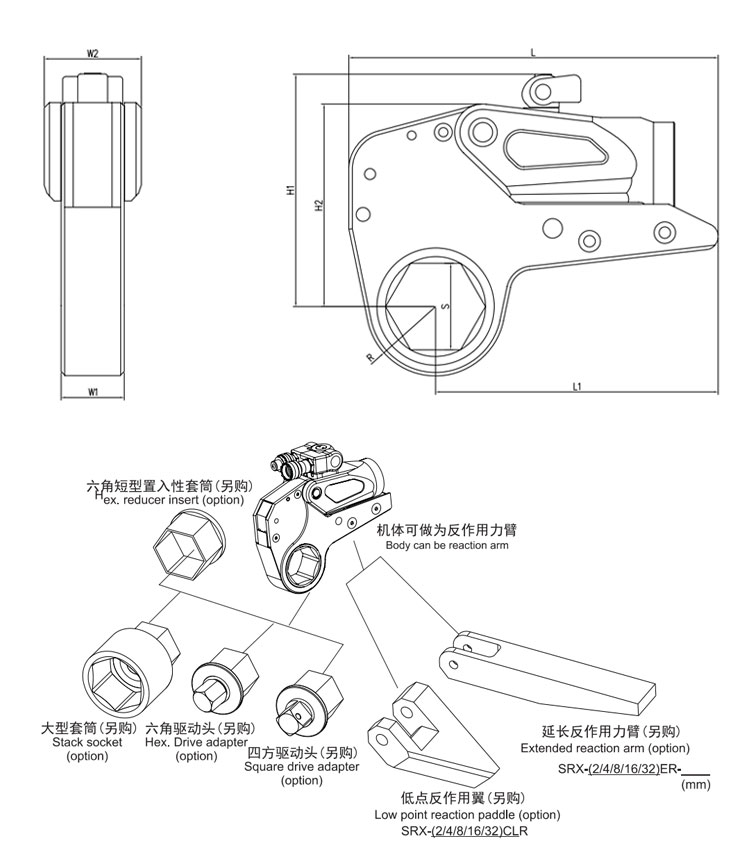

| L (mm) | 205 | 251.3 | 302.5 | 367 | 400.5 | 457.5 |
| L1 (mm) | 147 | 188 | 233 | 283 | 308 | 364 |
| H1 (mm) | 129 | 163 | 191 | 223 | 246 | 282 |
| H2 (mm) | 100 | 136 | 166.5 | 198 | 224 | 265 |
| W1(mm) | 32 | 41 | 53 | 64 | 70 | 84 |
| W2(mm) | 50 | 66 | 83 | 99 | 110 | 132 |
| R (mm) | 41.3 | 53.8 | 68.8 | 85.3 | 98.8 | 115.8 |
| Link S(mm) | 27-50 | 27-65 | 50-90 | 85-115 | 95-135 | 00-155 |
| R (mm) | 25.8 | 34.8 | 39.8 | 46.8 | 50.8 | 56.8 |
