Torque Tools

Calibration Test Bench

Calibration equipment

Pass or fail: preset torque tolerance, intelligent automatic analysis of measurement resultsGenerate Excel table: including tool name, serial number, measurement results, working conditions, date and time, etc.Calibration report printing: Print calibration report with one clickDiversity of display channels: tablets, industrial touch screens, laptops, mobile APPs
Description

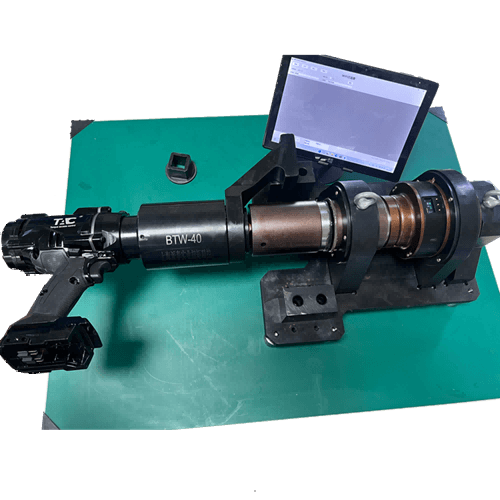

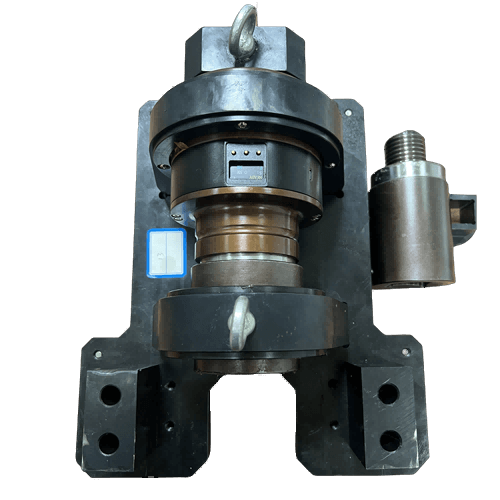

TAC-TC  Dual-Transducer Test Stands-Rundown&Fixture



• Dual transducer stations for testing multiple ranges or different types of tools.

•Solid machined aluminum plate for stability, includes rundown fixture and bearing support for test stand models.

•Steel reaction posts with drill bushings for strength and durability.

•Reaction fixture for low profile wrenches

•Welded stainless steel table.

•Supplied with torque analyzer display and articulated arm.



Display Specifications


System Accuracy: 0.5% bidirectional

Engineering Units: ft-lbs, Nm

Modes: Track, Peak, or First Peak

Housing: Heavy Duty Aluminum

Batteries:Rechargable NiMH batteries provide 10–12 hours of continuous use

Display: Segmented

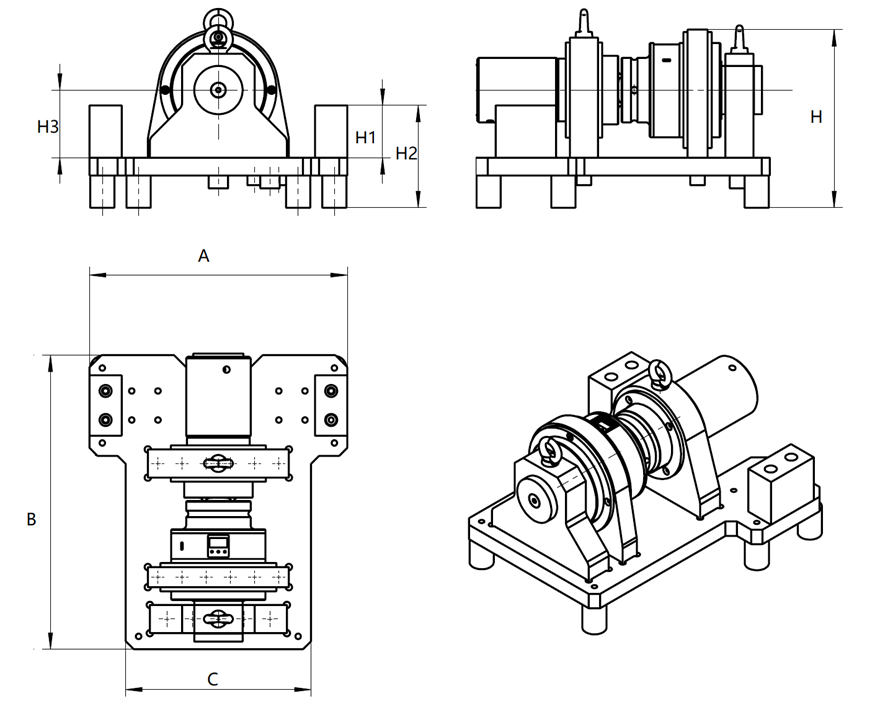

ModelMin Torque (N.m)Max Torque (N.m)ABCHH1H2H3Weight
mm(Kg)
T5005005000280320200200501006035
T1000100010000320365230220651258550
T250025002500050054042040010022015070
T500050005000070066060055014028019090
